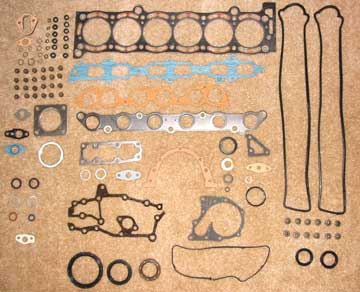

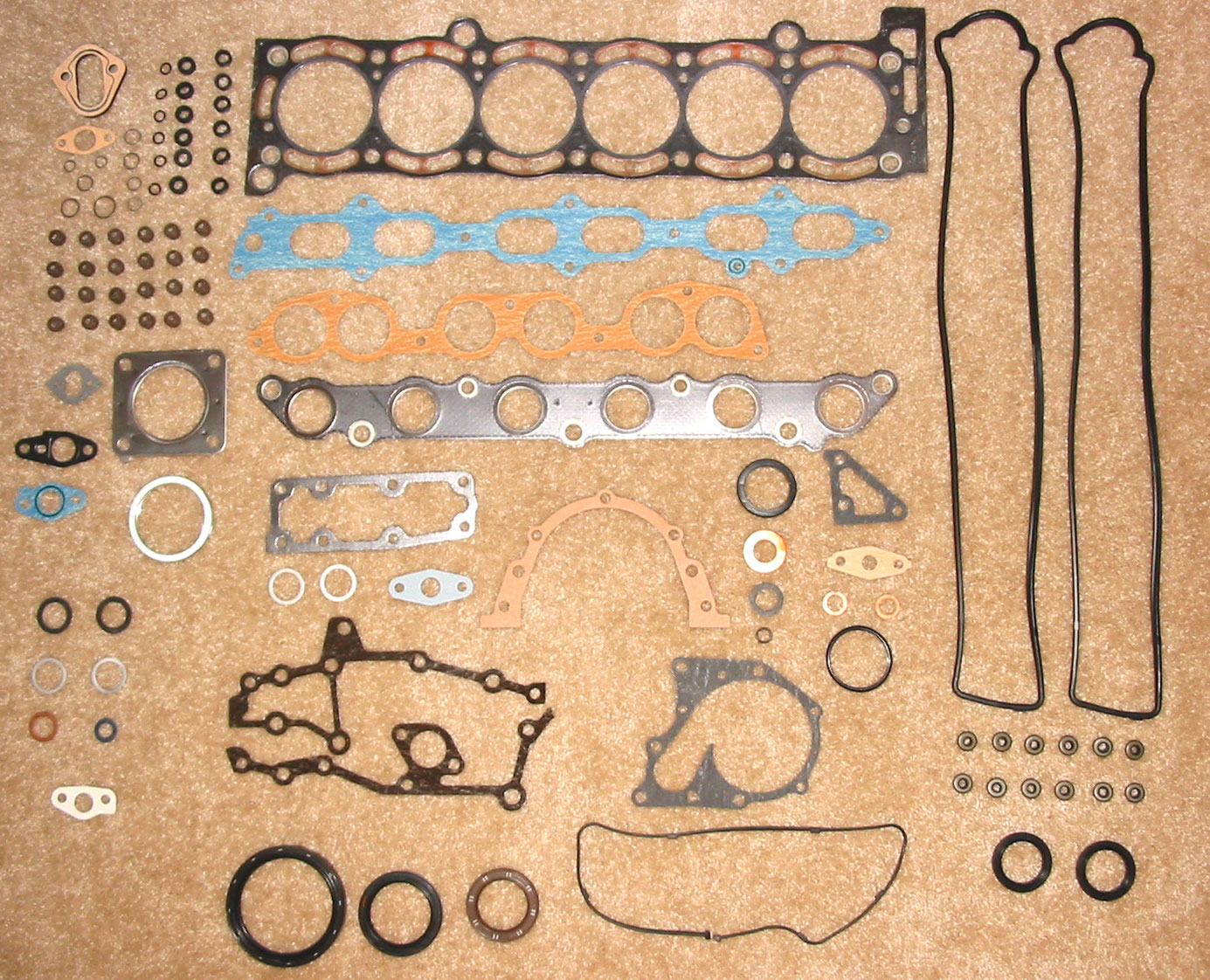

| Gasket Kit, Engine Overhaul (04111-42023) | ||
|---|---|---|
| LPN | Qty | Description |
| 11115-42021 | 1 |
Gasket, Cylinder Head |
| 17173-43040 |
1 |
Gasket, Exhaust Manifold To Head |
| 17177-42020 |
1 |
Gasket, Intake Manifold To Head, #1 |
| 17176-42020 |
1 |
Gasket, Air Surge Tank To Intake Manifold |
| 11328-42010 |
1 |
Gasket, Timing Gear (Or Chain) Cover |
| 11213-42020 |
2 |
Gasket, Cylinder Head Cover |
| 90913-02062 |
24 |
Seal Or Ring, O (For Valve Stem Oil) |
| 90210-07001 |
12 |
Washer, Seal (For Cylinder Head Cover) |
| 23291-41010 |
6 |
Insulator, Injector Vibration |
| 90480-13005 |
6 |
Grommet (For Fuel Injector) |
| 90301-07001 |
6 |
Ring, O (For Fuel Injector) |
| 90430-37140 |
1 |
Gasket (For Oil Filler Cap) |
| 16341-35010 |
1 |
Gasket, Water Outlet |
| 17278-42010 |
1 |
Gasket, Turbo To Exhaust Manifold |
| 15473-42010 |
1 |
Gasket, Turbo Oil Outlet, #2 |
| 15471-58010 |
1 |
Gasket, Turbo Oil Inlet |
| 90917-06050 |
1 |
Gasket, Exhaust Pipe |
| 16347-42020 |
1 |
Gasket (For Turbo Water Pipe) |
| 16343-42020 |
1 |
Gasket, Water Outlet Housing |
| 96721-19010 |
1 |
Ring, O (For Oil Level Gage Guide) |
| 25685-42011 |
1 |
Gasket, EGR Cooler, #1 |
| 11383-41010 |
1 |
Gasket, Engine Rear Oil Seal Retainer |
| 11312-42010 |
1 |
Gasket, Front End Plate |
| 11313-42020 |
1 |
Gasket, Front End Plate |
| 90311-52003 |
1 |
Seal, Oil (For Timing Gear Cover) |
| 90311-42003 |
1 |
Seal, Oil (For Timing Gear Case) |
| 90311-80001 |
1 |
Seal, Engine Rear Oil |
| 90923-06012 |
1 |
Insulator, Fuel Pipe Support |
| 16124-42020 |
1 |
Gasket, Water Pump Cover |
| 90430-20010 | 1 |
Gasket, Union Bolt for Oil Filter Bracket |
| 90311-35017 | 2 |
Seal, Oil (For Camshaft Setting) |
| 16347-42010 | 1 |
Gasket, Water By-Pass |
| 90430-14253 | 2 |
Gasket for Union, Water By-Pass Pipe, #2 |
| 90430-18023 | 1 |
Gasket (For Oil Pan Drain Plug) |
| 90430-22008 | 2 |
Gasket (For Water By-Pass Pipe) |
| 25627-42030 | 1 |
Gasket, EGR Valve |
| 90430-12026 | 2 |
Gasket (For Fuel Pipe) |
| 90430-17006 | 1 |
Gasket (For Pulsation Damper Hose) |
| 90430-14007 | 1 |
Gasket, Pipe Fuel Delivery Inlet |
| 90430-10204 | 2 |
Gasket (For Fuel Pressure Regulator) |
| 90430-08012 | 2 |
Gasket |
| 90430-12005 | ? 1 |
Gasket (For Fuel Pipe Support) |
