When things go wrong your ABS system it stores "error codes" about the events it detected in its internal memory. Those remained stored as long as the ECU has power. When you start the car the "ANTILOCK" light should display for 3 seconds then turn off. In the event of an error this light will alert you. If you don't have ABS then this obviously doesn't apply to you and you probably should spend your free time doing something more constructive.

ABS Actuator Check Connector How to check:

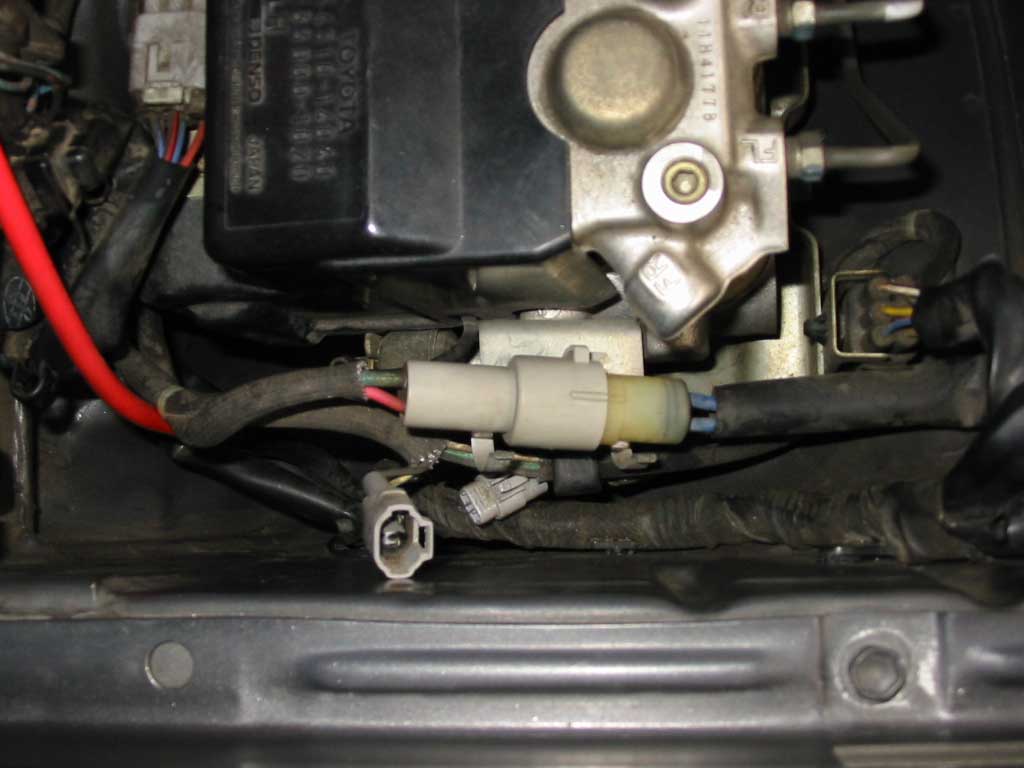

Turn the ignition to the ON position and then open the hood and locate the actuator check connector. Is it next to the ABS unit on the passenger side and is a 2 wire molded connector. The picture to the right shows its location with the connector disconnected.

The ANTILOCK light should now be blinking, you might have to wait 4 seconds. If it is continuos quick blinking then you are fine there are no error codes, otherwise you have to count the blinks. Each set of blinks will represent one digit with a longer pause to separate digits. There may be more than one code present, but it is on a continuos loop. For example if you saw blink...blink.......blink...blink...blink...blink....... that would be a code 24. If the light is always on it means there is a malfunction in the computer. After you are done you can clear the codes by pulling the EFI fuse (15A) in the fuse block right next to the diagnostic connector for 30 seconds or more, make sure the engine is off.

Error Codes
Code Error
11 Open circuit in solenoid relay

  • Actuator inside wire harness
  • Solenoid relay
  • Wire harness and connector of solenoid relay circuit
12 Short circuit in solenoid relay

  • Actuator inside wire harness
  • Solenoid relay
  • Wire harness and connector of solenoid relay circuit
13 Open circuit in pump motor relay

  • Actuator inside wire harness
  • Pump relay
  • Wire harness and connector of pump relay circuit
14 Short circuit in pump motor relay

  • Actuator inside wire harness
  • Pump relay
  • Wire harness and connector of pump relay circuit
21 Open or short circuit in 3 position solenoid of right front wheel

  • Actuator solenoid
  • Wire harness and connector of actuator solenoid circuit
22 Open or short circuit in 3 position solenoid of left front wheel

  • Actuator solenoid
  • Wire harness and connector of actuator solenoid circuit
23 Open or short circuit in 3 position solenoid of rear wheel

  • Actuator solenoid
  • Wire harness and connector of actuator solenoid circuit
31 Right front wheel speed sensor signal malfunction

  • Speed sensor
  • Sensor rotor
  • Wire harness and connector of speed sensor
32 Left front wheel speed sensor signal malfunction

  • Speed sensor
  • Sensor rotor
  • Wire harness and connector of speed sensor
33 Rear wheel speed sensor signal malfunction

  • Speed sensor
  • Sensor rotor
  • Wire harness and connector of speed sensor
34 Open circuit in front speed sensor

  • Speed sensor
  • Sensor rotor
  • Wire harness and connector of speed sensor
41 Low battery voltage (9.5V or lower)

  • Battery
  • Voltage Regulator
42 Abnormally high battery voltage (17.2V or higher)

  • Battery
  • Voltage Regulator
51 Pump motor of actuator locked or open circuit in pump motor circuit of actuator.

  • Pump motor, relay and battery
  • Wire harness, connector and ground bolt of actuator pump motor circuit.
