This is a collection of the different gaskets for use in my 89 Turbo Supra. On this page are the description, pictures and part numbers. I was going to give high res versions with detailed measurements, but that was just to time consuming, but you can click for a high-res version.. So I hope this is useful or at least cool to look at.
Gasket Kits
Crush Washers
Part Number Description ID (mm) OD (mm) Tk (mm) Type
90430-12005 Turbo Oil Inlet Pipe
Gasket (For Fuel Pipe Support)		 12.00 16.00 1.00 Cu
90430-14235 Union, Water By-Pass Pipe, #2 14.25 20.00 1.00 Cu
90430-20010 Oil Filter Bracket Union Bolt 20.00 30.00 1.00 Cu
15134-20010 Oil Filter Relief Valve 18.00 24.00 1.00 Cu
90430-22008 Gasket (For Water By-Pass Pipe) 24.30 31.00 1.00 Al
90430-12026 Gasket (For Fuel Pipe) 24.30 31.00 1.00 Al
90430-14006 Gasket (For Pulsation Damper Hose) 17.00 22.00 1.60 Al
90430-17007 Gasket, Pipe Fuel Delivery Inlet 14.00 18.30 1.20 Al
90430-10204 Gasket (For Fuel Pressure Regulator) 10.30 14.20 1.00 Al
90430-12026 Gasket (For Fuel Pipe) 12.10 16.00 1.00 Al


Idle Speed Controller: (22278-42010)
Gasket, Idle Speed Control Valve
Turbo Water Pipe: (16347-28010)
Gasket (For Turbo Water Pipe)
Turbo Oil Outlet: (15473-41010)
Gasket, Turbo Oil Outlet, #2
Turbo Oil Inlet: (15471-54010)
Gasket, Turbo Oil Inlet

Turbo to Exhaust Manifold: (17278-42010)
Gasket, Turbo To Exhaust Manifold
Turbine Outlet Elbow: (17279-42010)
Gasket, Turbine Outlet Elbow
Exhaust Pipe Gasket: (90917-06050)
Gasket, Exhaust Pipe

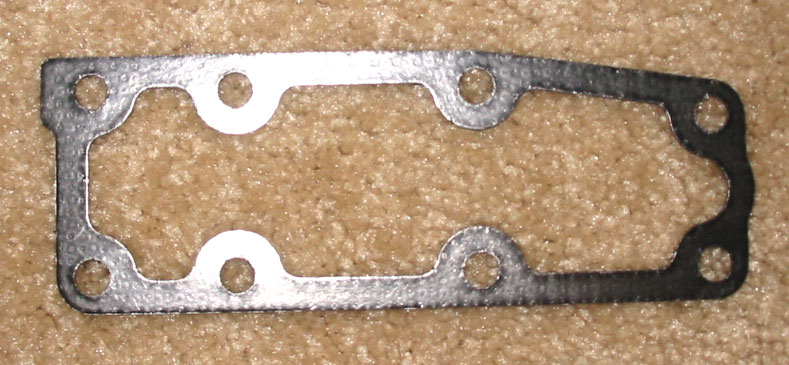

EGR Cooler: (25685-42011)
Gasket, EGR Cooler, #1

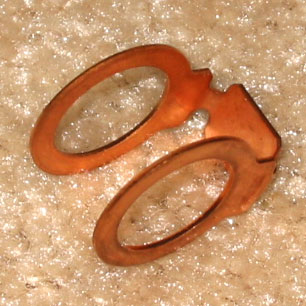

PS Pressure Port: (44327-12010)
Gasket, Pressure Port #1
Insulator, Injector Vibration: (23291-41010)
Insulator, Injector Vibration
Ring, O (For Fuel Injector): (90301-07001)
Ring, O (For Fuel Injector)
Grommet (For Fuel Injector): (90480-13005)
Grommet (For Fuel Injector)

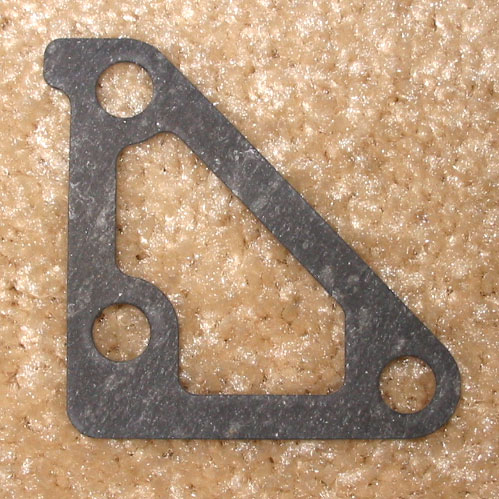

Gasket, Water Outlet Housing: (16343-42020)
Gasket, Water Outlet Housing
Insulator, Fuel Pipe Support: (90923-06012)
Insulator, Fuel Pipe Support

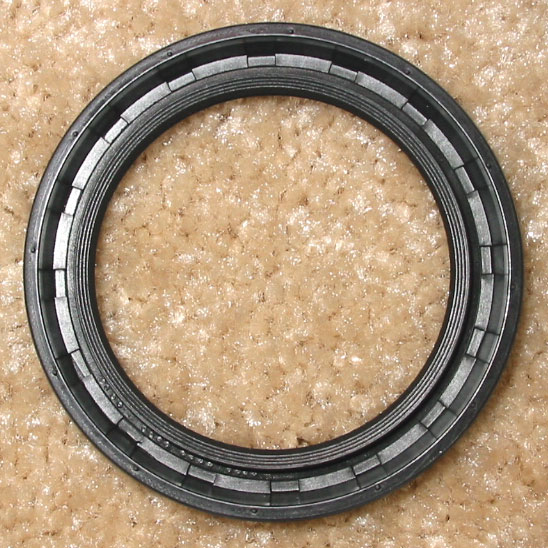

Seal, Oil (For Timing Gear Cover): (90311-52003)
Seal, Oil (For Timing Gear Cover)

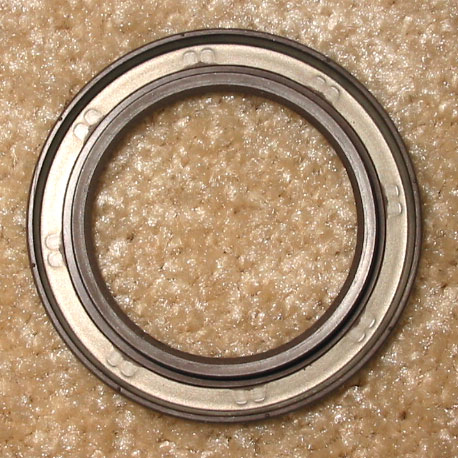

Seal, Oil (For Timing Gear Case): (90311-42026)
Seal, Oil (For Timing Gear Case)

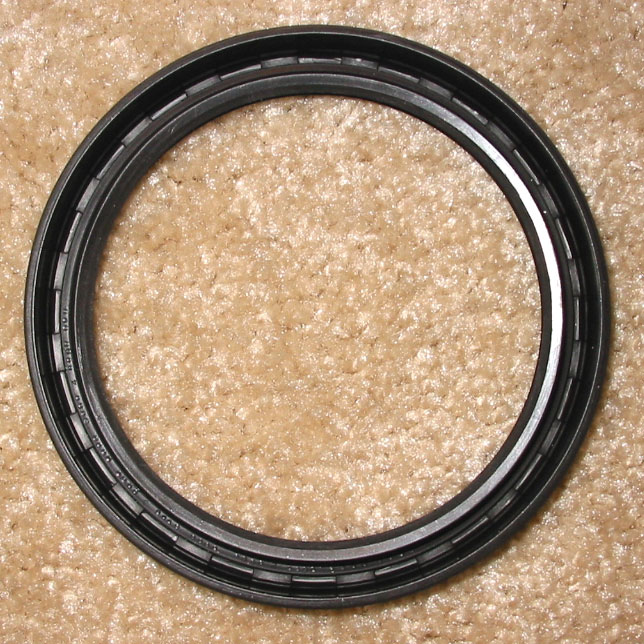

Seal, Engine Rear Oil: (90311-80001)
Seal, Engine Rear Oil

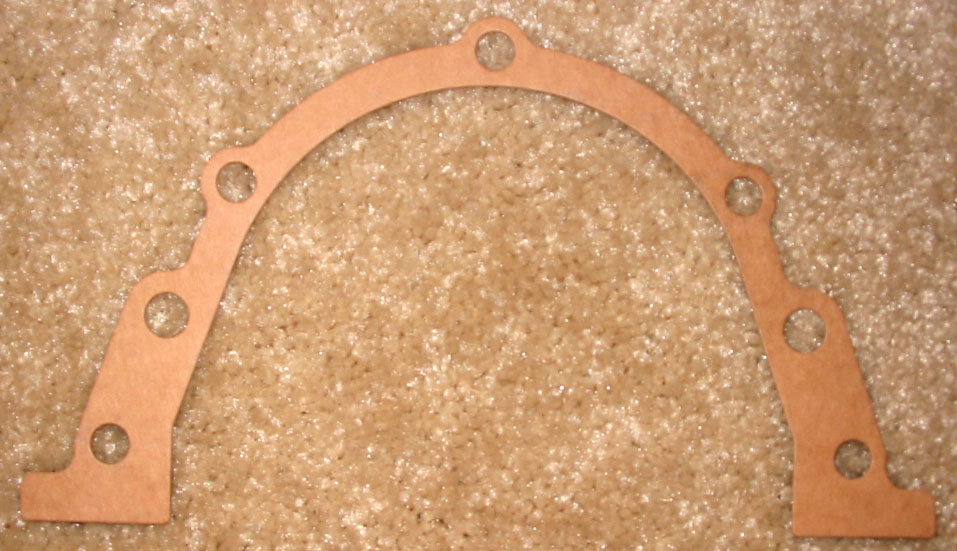

Gasket, Engine Rear Oil Seal Retainer: (11383-41010)
Gasket, Engine Rear Oil Seal Retainer

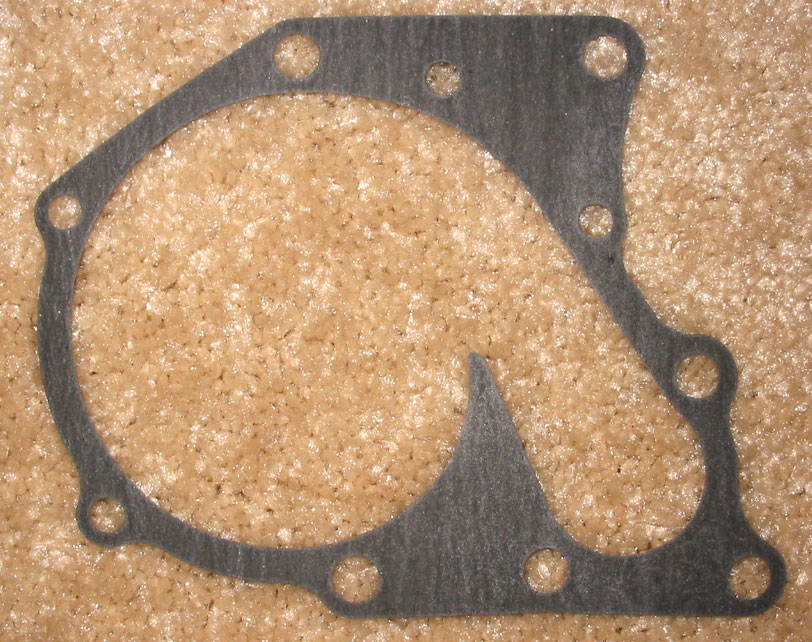

Gasket, Water Pump Cover: (16124-42020)
Gasket, Water Pump Cover

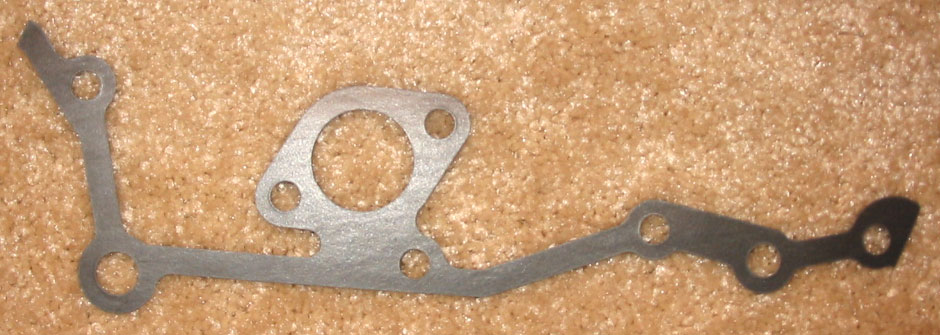

Gasket, Front End Plate No1: (11312-42010)
Gasket, Water Pump Cover

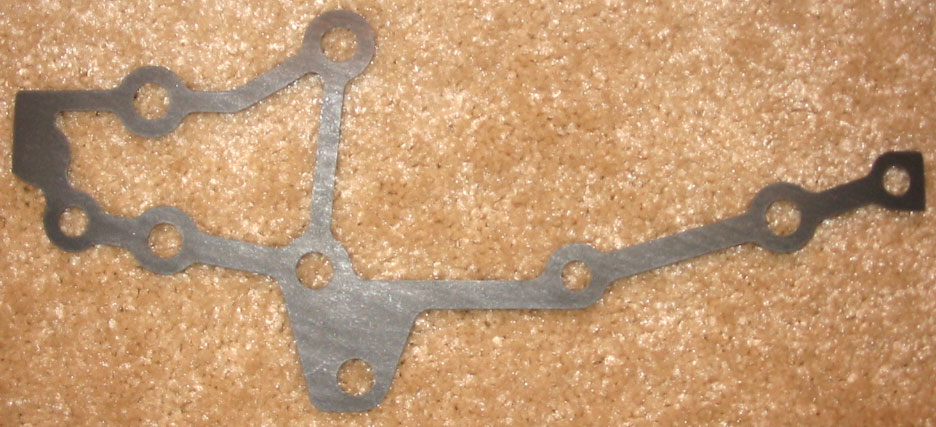

Gasket, Front End Plate No2: (11313-42020)
Gasket, Front End Plate

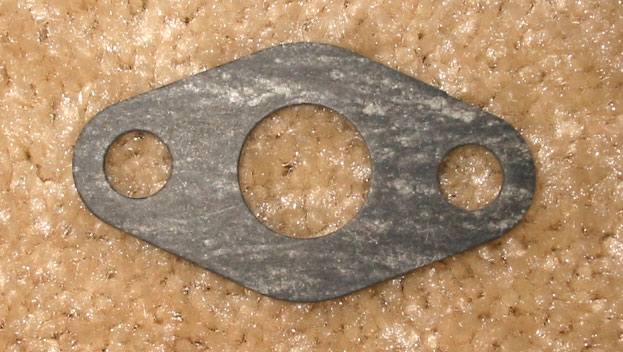

Gasket, Water By-Pass: (16347-42010)
16347-42010



Exhaust Manifold to Head: (17173-42010)
Gasket, Exhaust Manifold To Head

Intake Manifold to Head: (17177-42020)
Gasket, Intake Manifold To Head, #1

Air Surge Tank to Intake Manifold: (17176-42020)
Gasket, Air Surge Tank To Intake Manifold
