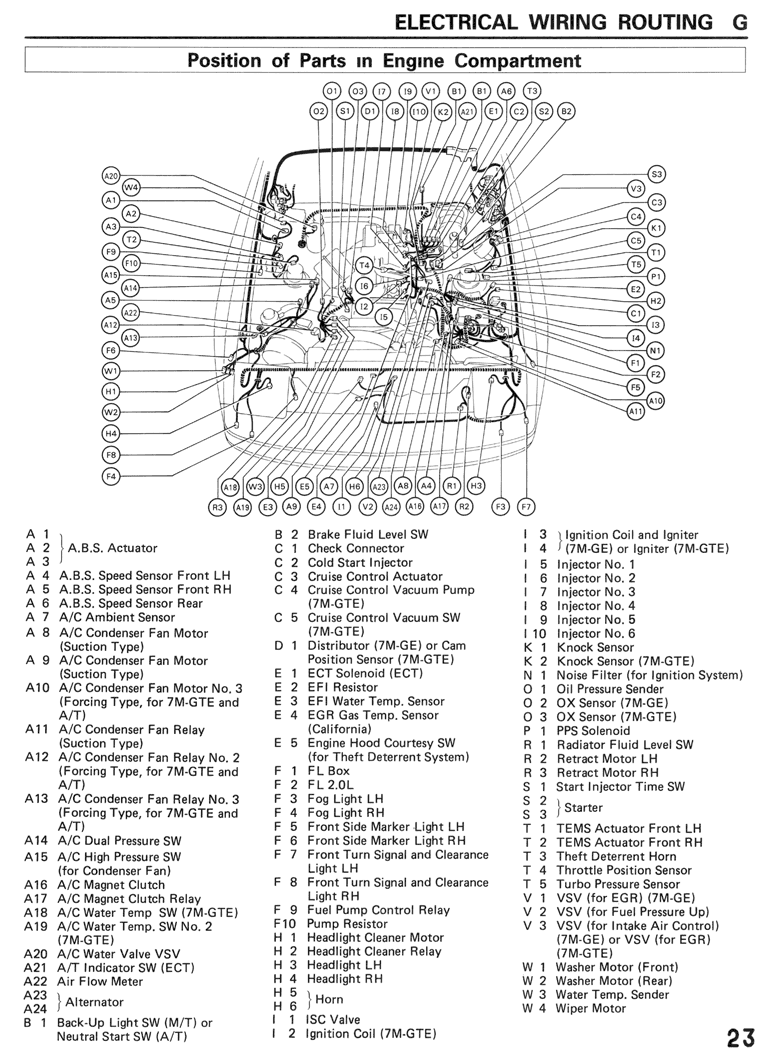

Electrical Wiring Routing — Page 23 of 151

<Section Index>

Main - Page 23/151

Source: Supra/Library/TEWD/MK3/manual.aspx@S=Main&P=023.html
Archive: cygnusx1.net
ID: TEWD/MANUAL.ASPX@S=MAIN&P=023.HTML
