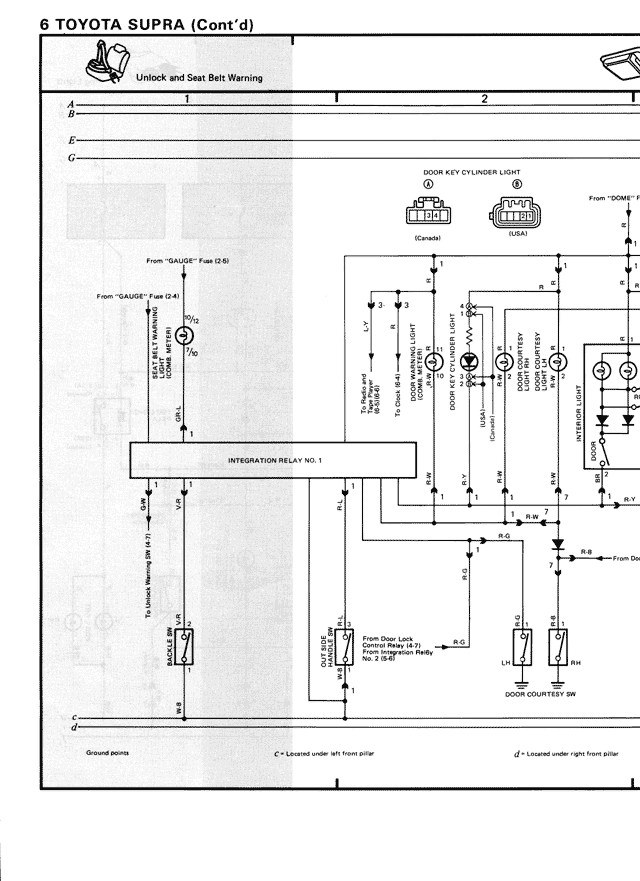

Electrical Wiring Diagrams — Page 23 of 35

<Section Index>

D - Page 23/35

Source: Supra/Library/TSRM/MK3/manual.aspx@S=D&P=23.html
