Home / Supra / Library / TSRM / MK3 / manual@S=D&P=27.html

Library / TSRM TSRM/MANUAL.ASPX@S=D&P=27.HTML

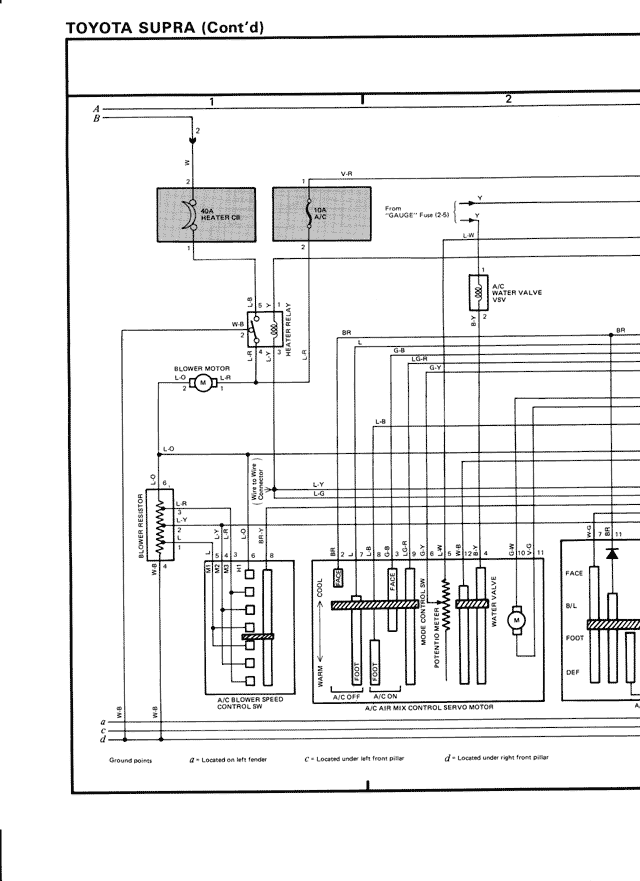

Electrical Wiring Diagrams — Page 27 of 35

<Section Index>

D - Page 27/35

Source: Supra/Library/TSRM/MK3/manual.aspx@S=D&P=27.html
Archive: cygnusx1.net
ID: TSRM/MANUAL.ASPX@S=D&P=27.HTML
