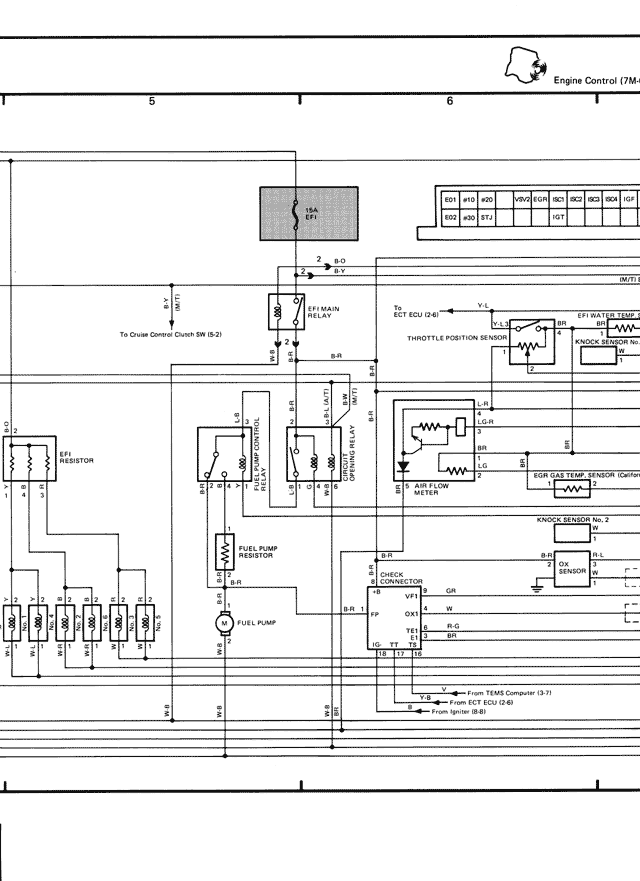

Electrical Wiring Diagrams — Page 33 of 35

<Section Index>

D - Page 33/35

Source: Supra/Library/TSRM/MK3/manual.aspx@S=D&P=33.html
Archive: cygnusx1.net
ID: TSRM/MANUAL.ASPX@S=D&P=33.HTML
