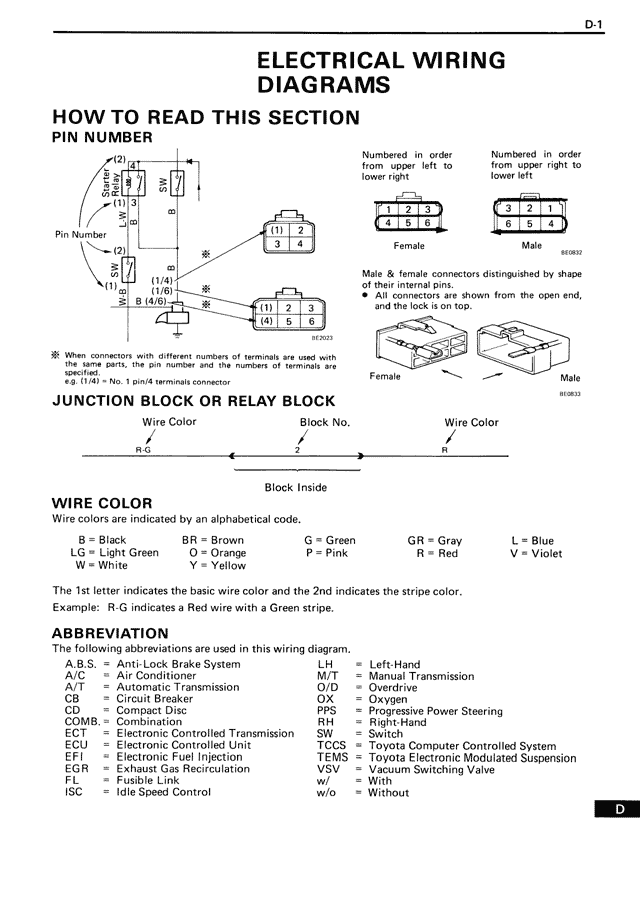

Electrical Wiring Diagrams — Page 1 of 35

<Prev Page>

<Section Index>

D - Page 1/35

Source: Supra/Library/TSRM/MK3/manual.aspx@S=D&P=1.html
Archive: cygnusx1.net
ID: TSRM/MANUAL.ASPX@S=D&P=1.HTML
